2016-2017 SHELBY GT350/GT350R NOW COMES STANDARD WITH THE MOST POWERFUL SUPERCHARGER, THE ALL NEW GEN 3 2.9L SUPERCHARGER.
This is the same supercharger featured in the 2016 Ford Cobra Jet.

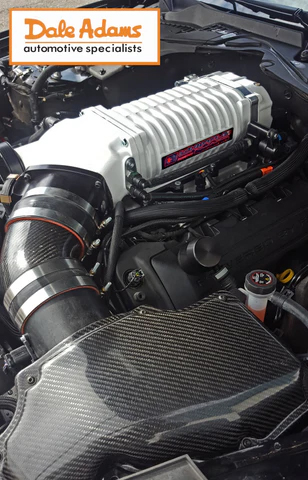

If you want the most advanced, most powerful, most upgradeable system available, then here it is! Whipple Superchargers has yet again set a new precedence for bolt-on power and industry leading durability. Featuring the new, 3rd generation Whipple 2.9L supercharger with an all new rotor profile and new high flow rotor housing to unleash even more power than ever before. The GT350/GT350R Whipple System includes the billet Roval 132mm electronic throttle body, high flow 72lb/hr fuel injectors for massive flow capacity and new high flow intercooler pump. The industry leading Whipple Shelby GT350 system makes up to 875 (+350hp) engine horsepower and 660 (+231ft/lb) foot pound of torque on 93 octane fuel with only 9psi of boost! Nearly a 65% power gain with bolting the Whipple Supercharger with it's unique Roval 132mm billet throttle body and high flow injectors!
Nobody puts more time and resources into the development then Whipple. The proof is in the product, more power per lb of boost than any other system. The key to making such incredible reliable power is in the Whipple unique twin screw supercharger, massive air-to-water intercooler, oversized Crusher air system and innovative PCM programming that keeps the power-train safe and secure. Whether you’re looking for a daily driver that needs a little more punch or you’re craving a tire-frying, rubber shredding street machine, the Whipple Supercharger systems delivers like no other supercharger system today. Power from tip in to redline, the new Whipple Supercharger system makes incredible power across the entire rpm range while maintaining industry leading drive-ability.
With years of OEM and racing experience, Whipple engineers have developed a unique PCM calibration that reconfigures all the necessary engine functions including fuel, spark, knock detection, variable cam timing, multiple RPM limits, torque management and electronic throttle control. The vehicles PCM constantly monitors the engines torque output while monitoring many different parameters to keep the engine in it’s ideal parameters. If a parameter falls below specification, the PCM will lower boost and torque output until the problem can be cured. No other calibration in the field has such technology, giving the Whipple SC system unheralded performance and reliability.
Whipple Advantage
The Whipple Advantage is designed into every Whipple SC system. This advantage is broken down into 5 categories during the design and testing phases which truly sets Whipple apart from others:
- Best power for money.
- Most complete package.
- Maximum power.
- Maximum power expandability.
- Aesthetic appeal.
What does this mean? You get it all, in one package. Massive power gains with the biggest superchargers, biggest intercoolers, biggest intercooler systems, biggest air-inlet systems while providing robust belt systems and heavy-duty spring tensioners. The intake manifold is designed with high velocity in mind, while increasing plenum volume to lower pressure loss at high power applications.
You then get OEM style fuel and vacuum hoses with nylon sheaving for added protection and appeal, OEM style quick connect fittings with billet aluminum fittings. No ugly brass fittings hanging off the inlet like some others. Wire extensions are injection molded to allow simple plug-and-play installations. Each system also has multiple options for increased performance such as oversized heat-exchangers with dual fans, billet high flow throttle bodies, oversized cold air intake systems just to name a few.
So don’t be fooled by others, there is no comparing to the Whipple supercharger systems, simply the top of the line packages designed and built to exceed all expectations.
Exclusive Features
- No other upgrades required, just massive power right out of the box
- Front entry W175ax (2.9 liters) Whipple twin-screw supercharger that significantly outperforms competitions 1.9L and 2.3L roots-type systems
- 2.9L 26% larger than 2.3L roots-type
- Front feed supercharger utilizes precision ground helical cut gears vs a problematic belt
- Oversized Crusher™ inlet for maximum airflow capacity and minimal rotor cavitation
- Front feed allows for oversized intercooler core compared to other smaller intercooler cores giving Whipple lower air charge temps which allows more boost and timing to be run on pump gas
- Massive air-to-water aluminum bar-plate intercooler offers more cooling than any other positive displacement system available, nothing comes close
- Massive oversized aluminum intercooler reservoir (over 2 gallons) holds more than double any competitors IC water system allowing longer more consistent power
- Whipple Superchargers massive oversized intercooled air-bypass system for industry leading reduction of burst knock and incredible fuel economy
- Self-contained oversized oil system for dramatically reduced oil temps in even the most demanding conditions
- Exclusive 3x5 rotor combo for significant increase in airflow under the curve than less efficient 4x6 rotor combo or 4x4 roots
- Center discharge port for better cylinder to cylinder distribution then other twin-screws with cobbled together billet adapters and forward facing discharge
- W175ax SC bottom is open for increased plenum volume and better over-intercooler air distribution giving more intercooler effectiveness
- Extra plenum volume below intercooler core for far less pressure drop
- Discharge down design allows for less pressure loss which gives more power at lower boost levels
- Top mount design allows for cooler operation then upside down SC's that conduct heat from engine and are trapped by runners and covers, causing hotter manifold temps and less power per pound of boost
- More boost at the "hit" than any other twin-screw
- Flat torque curve for incredible acceleration
- Oversized heat exchanger for incredible intercooler water temps
- Fits under factory hood with no modifications
- No internal modifications required
- Completed installation looks factory installed, not some cobbled together kit with multiple billet adapters
- Kits come complete with all necessary parts and hardware for installation
- Unique oil level sight glass for easy oil level and quality check, no dipstick to bind or misread
- Plug and play wiring with male and female connections
- Proven 6-rib belt system with heavy duty spring loaded tensioner and adjustable idler system
- Stainless steel tapered jack-shaft with unique plastic cover (or optional carbon fiber) for increased safety
- OEM quick connect fittings for easy installation, no ugly brass or steel fittings on the SC
- Complete kits and Competition kits are available
- Available in wrinkle black, polish, Ford textured blue or any custom color available
- Instant boost at the touch of the throttle
- 3 minute pulley changes
- Lightweight pocketed SC pulley
For More Information please contact Derek Adams Dale Adams Automotive Specialists (403) 777-4777 [email protected]
